Home Products Floor Sweeper Ride On Floor Sweeper S3 Street Sweeper

S3
  • S3

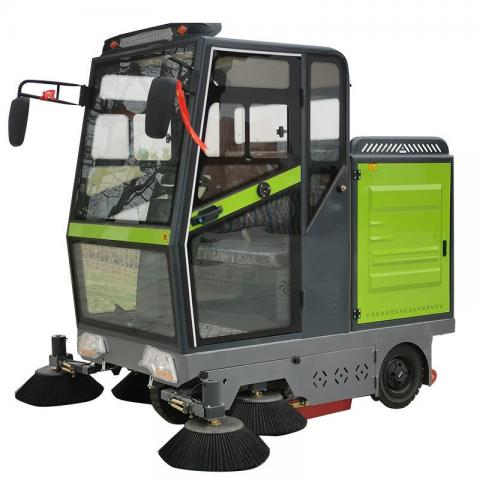

  • S3 Street Sweeper

  • Model : S3

  • Part Name

    NO.

    Items

    Specification

    Finished Car

    1

    Model

    S3

    2

    Sweep Width

    1900mm

    3

    Main Brush Width

    700mm

    4

    Productivity

    10000-13500㎡/h

    5

    Working Hours

    5-6h

    6

    Bin Capacity

    180L

    7

    Edge Brush Diameter

    500mm

    8

    Travel Speed

    0-14km/h

    9

    Overall Dimension

    2100*1900*2030mm

    10

    Tank

    80L

    11

    Vacuum Filter Area

    5㎡

    12

    Tire Model Number

    Front 400-8, rear 400-8 solid tires

    13

    Control Style

    Intelligent control system (timing dust function)

    Warning Light

    1

    Headlights

    Square for LED headlight

    2

    Taillights

    Steering, braking, driving, integrated taillights

    3

    Alarm Lights

    Top operation warning light

    4

    Backing light

    Astern image

    Storage Battery

    1

    Battery Type

    Lead acid is maintenance free

    2

    Battery Capacity

    48V100Ah; Assorting48V120Ah/48V150aH

    Motor

    1

    Travelling Motor

    800W Smart shift

    2

    Rolling Brush Motor

    800W

    3

    Edge Brush Motor

    4*100w


  • Add To Inquiry
  • Have a question?
  • Share:
Details

Product performance:

Core Components：
1.Battery: brand (Tannen) lead-acid battery, maintenance-free;
2.This machine is equipped with 800W drive motor, high speed, stable peak, strong power, the vehicle can easily cope with 30° slope;
3. It also carries four 100W side brush motors, and one 800W roller brush motor with high quality, high density nylon brushes, which can easily deal with the rubbish on the road;


Main components:
1.8 square metres vacuum filtration area can effectively control dust and prevent 2 times pollution;
2.80L water tank and 180L rubbish bin to meet daily work requirements;
3.Intelligent control system with timed dust removal function to prevent the filter element from clogging;


Safety settings:
1.LED headlight, to ensure the safety of operation at night or in dimly lit environment;
2. Warning light: to remind passers-by to pay attention to avoiding.
3.Electromagnetic brake system, fast response, control the vehicle in emergency situations;
4.HD reversing video to ensure the safety of reversing;
5. Increase the sunroof and high-power electric fan to ensure the safety of hot weather operation.

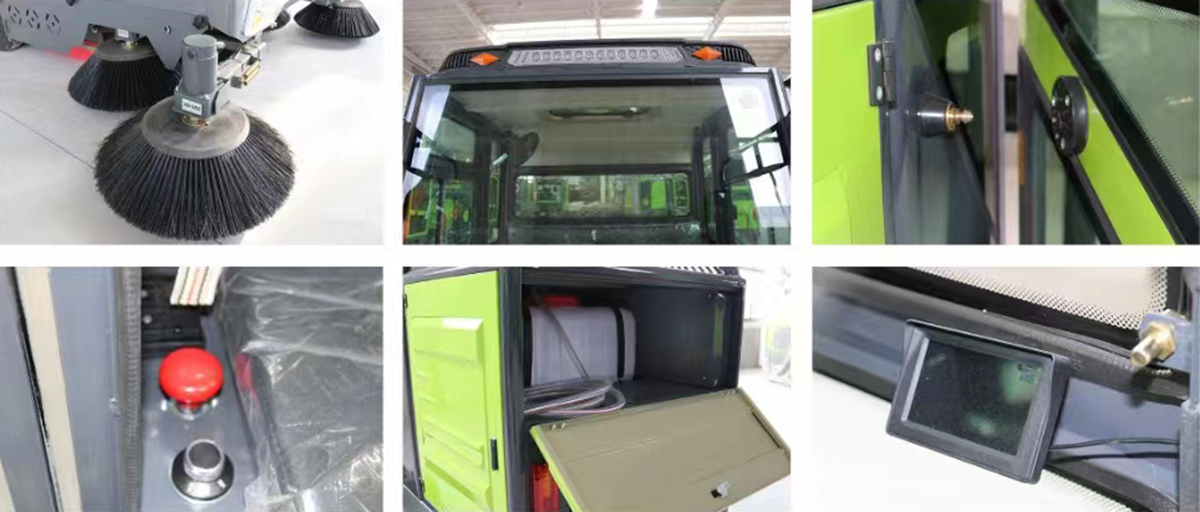

Details:
