S4
  • S4

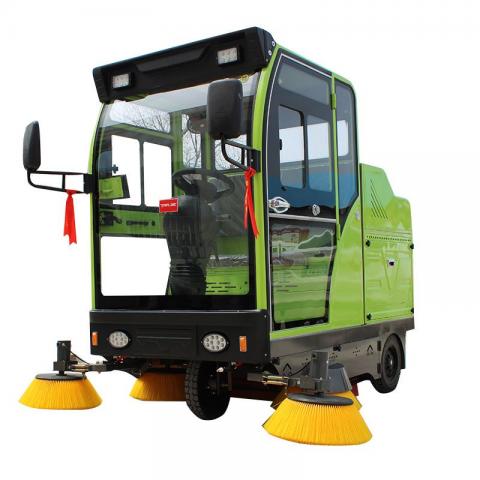

  • S4 Rider Sweepers

  • Model : S4
  • Part Name

    NO.

    Items

    Specification

    Finished Car

    1

    Model

    S4

    2

    Sweep Width

    2200mm

    3

    Main Brush Width

    800mm

    4

    Productivity

    10000-18000/h

    5

    Working Hours

    6-8h

    6

    Bin Capacity

    200L

    7

    Edge Brush Diameter

    600mm

    8

    Travel Speed

    0-14km/h

    9

    Overall Dimension

    2400*2200*2050mm

    10

    Tank

    80L

    11

    Vacuum Filter Area

    8

    12

    Tire Model Number

    Front 400-8, rear 400-8 solid tires

    13

    Control Style

    Intelligent control system (timing dust function)

    Warning Light

    1

    Headlights

    Square for LED headlight

    2

    Taillights

    Steering, braking, driving, integrated taillights

    3

    Alarm Lights

    Top operation warning light

    4

    Backing light

    Astern image

    Storage Battery

    1

    Battery Type

    Lead acid is maintenance free

    2

    Battery Capacity

    48V120Ah; Assorting48V150Ah/48V200aH

    Motor

    1

    Travelling Motor

    1000W Smart shift

    2

    Rolling Brush Motor

    800W

    3

    Edge Brush Motor

    4*100w

  • Add To Inquiry
  • Have a question?
  • Share:
Details

Product performance:

Core Components:
1.Battery: brand (Tannen) lead-acid battery, maintenance-free;
2.This machine is equipped with a 1000W drive motor, high speed, stable peak, strong power, the vehicle can easily cope with 30° slope;
3. It also carries four 100W side brush motors, and one 800W roller brush motor with high quality, high density nylon brushes, which can easily deal with the rubbish on the road;


Main components:
1.Double filter cartridge (8m2 large vacuum filtration area) to prevent dust from secondary pollution;
2.80L water tank and 200L rubbish bin to meet daily work requirements;
3. Intelligent control system, double vacuuming, double vibration dust removal, automatic timing vibration dust removal, maintenance is more convenient, to prevent the filter element clogging;
4. The whole vehicle electric control system has overload protection and under-voltage protection;
5. Front and rear are equipped with high-efficiency atomising nozzles to reduce the dust generated when the equipment is in use;


Safety settings:
1.LED headlight to guarantee the safety of operation at night or in dimly lit environment;
2. Warning light: to remind passers-by to pay attention to avoiding.
3.Electromagnetic brake system, fast response, control the machine in emergency situation;
4.HD reversing video to ensure the safety of reversing;
5. Increase the sunroof and high-power electric fan to ensure the safety of operation in hot weather;
6. The whole vehicle glass adopts explosion-proof toughened glass, which is not easy to break;
7. Large-size solid tyres, non-slip and wear-resistant, durable.

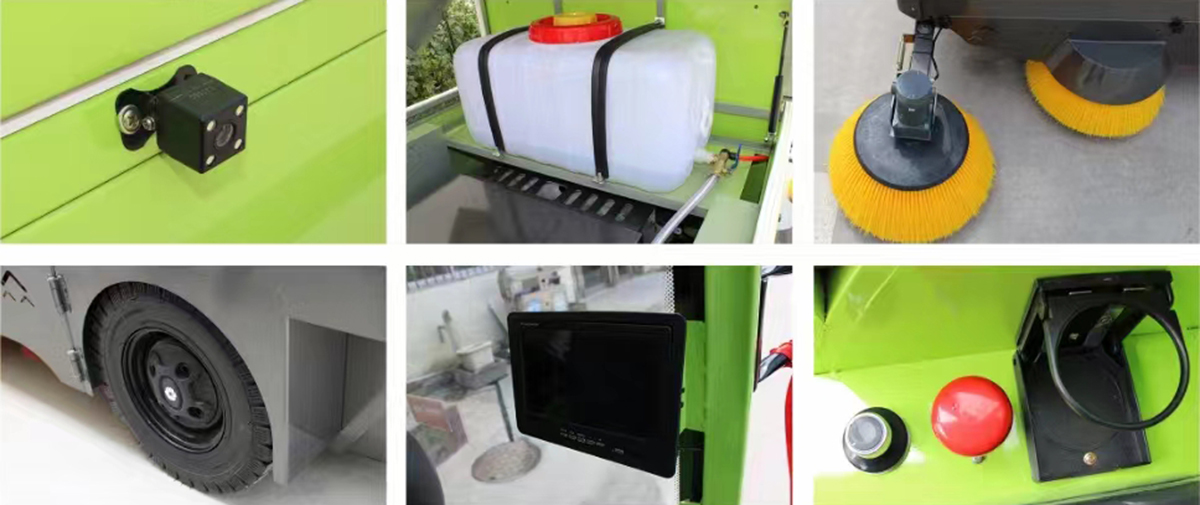

Details:
